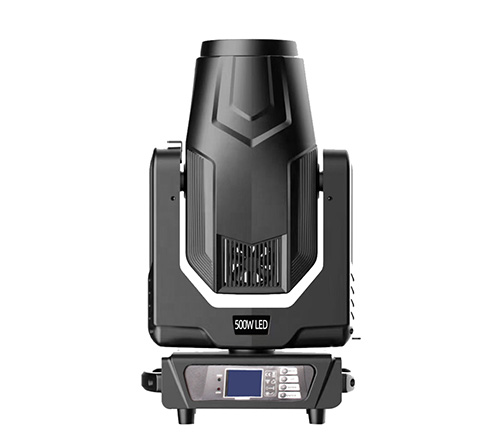

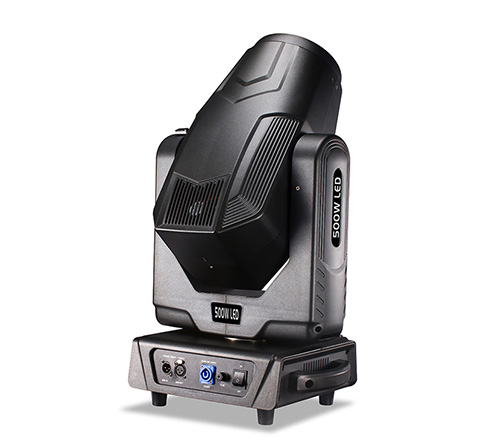

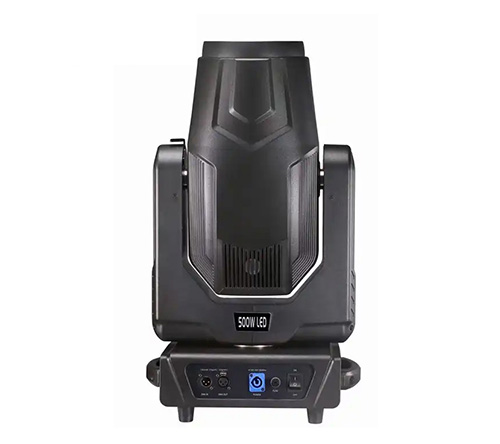

500W Cutting Light

The advanced scanning system is faster, more stable, quieter and has an auto-correct reset function
CTO color temperature correction system;

The cutting disc consists of 8 cutting Angle slices to form a controlled light spot cutting Angle system. The whole cutting Angle system can be rotated 90°. Through the accurate control of cutting light slices, triangular, diamond, rectangular and other shapes can be created in any direction, which can be displayed by touching the color LCD screen.

Focusing is electronic focusing, ultra-fine smooth adjustment of focal length;

Stroboscopic frequency can reach up to 25Hz, and can choose random stroboscopic and pulse stroboscopic;

main features:

● Voltage :AC220v,50Hz

●Light source: High power 500W white LED, 7500K

●LED life :20,000 hours

●CRI:>90

● Horizontal scanning :>630°

● Vertical scanning :>270° Advanced scanning system is faster, stable, quiet, with automatic error correction reset function: smooth and smooth CMY+CTO color mixing system;

●2 color plates: 6 fixed color plates + white light and 3 fixed color + linear CTO color plates can be positioned arbitrarily, with bi-directional rotation rainbow effect;

● Channels :23/28 international standard DMX512 channels

● Focus: electronic focus, ultrafine smooth adjustment of focal length;

● Aperture :5%~100% smooth adjustment;

● Stroboscopic: The maximum frequency can reach 25Hz, and can choose random stroboscopic and pulse stroboscopic;

● Dimming :0~100% linear dimming;

● Atomization :0~100% linear atomization;

● Amplification :4.5°~50° linear amplification;

● Cutting disc: a group of 8 cutting Angle slices composed of controllable light spot cutting Angle system, the entire cutting Angle system can be rotated 90°, through the precise control of cutting light slices can create any direction of triangle, diamond, rectangular and other shapes of light spots;

Technical Specifications

Light Source

⊙Light source: High power 500W white LED, 7500K

⊙LED expected service life: 20,000 hours

Optical system

⊙ Advanced optical system is used to ensure clear imaging

⊙ Dimming: 0~100% linear dimming

⊙ Zoom Angle :4.5°~35° linear amplification

Control and program

⊙4 touch keys

⊙ Control panel: built-in touch color LCD display

⊙ Control protocol: DMX512, RDM

⊙DMX control mode: 5 types

⊙ Control channel :23/28

⊙X /Y axis: 16 bit precision scan

X /Y axis

⊙X axis operating Angle: 540°

⊙ Y-axis operating Angle: 260°

⊙X axis /Y axis position out of step automatic correction

Color palette

⊙2 color plates: 6 fixed color plates + white light and 3 fixed color + linear CTO
The color film can be positioned arbitrarily, with a bi-directional rotating rainbow effect

Cutting system

⊙8 cutting Angle slices constitute a controlled light spot cutting Angle system, the entire cutting Angle system can be rotated 90°, through the precise control of the cutting light slices can create triangular, diamond, rectangular and other shapes of light spots in any direction

⊙ Fast and smooth operation, speed can be adjusted

⊙ The cutting system can move smoothly and position accurately

Electrical and interface

⊙ Adaptive power supply

⊙ Input voltage range: AC220v,50Hz

⊙ Power socket: Power connector input/output (optional)

⊙ Signal input/output: electrical and interface three-core and five-core cannon socket

Luminaire specification

⊙ Lamp dimension: Width: 460 mm depth: 380 mm height: 740 mm Net weight Lamp specification: 25 kg

Working environment

⊙ Maximum ambient temperature: 40°C

⊙ Minimum operating temperature: 0°C

⊙ Maximum surface temperature: 65°C

Authentication

⊙CE Certification

Install

⊙ Can be mounted horizontally or vertically, not side hanging

Universal operating position

Factory configuration

⊙ Electronic Manual

⊙ Power Cable

⊙2 suitable fixed folding lamp hooks

Optional accessories

⊙ Rain cover

⊙ signal cable

⊙ Safety rope

Dimensional Drawing

Lllumination Diagram

Renderings

Optional Accessories
