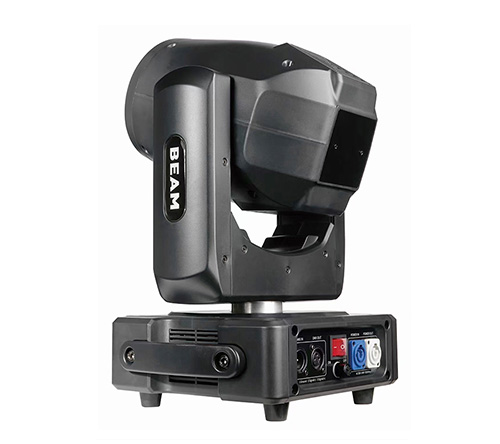

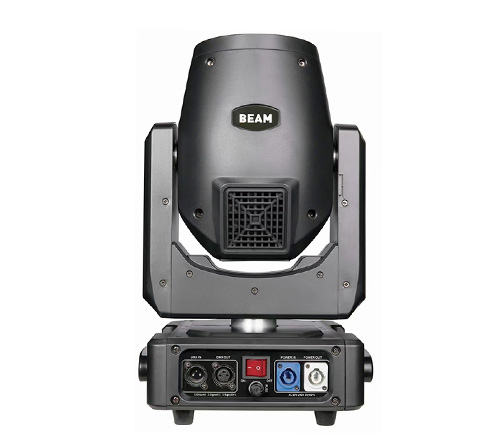

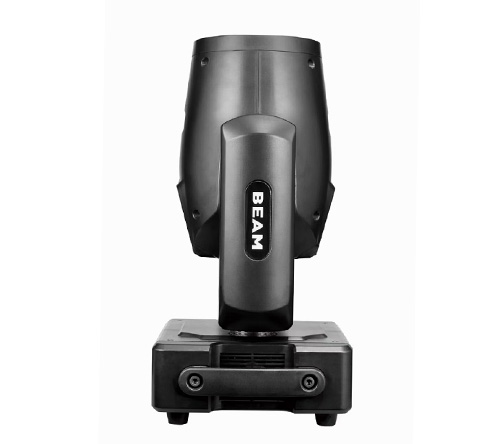

MiNi230W Beam Light

KAYN230w bulb, lens is 6-layer clear color coated lens, so that the lighting effect is better, the perfect combination of light source and optical technology;
Compact size, easy to install, equipped with 1 fixed color disk, 13 colors + white light, rainbow effect speed adjustable, half step color effect and 1 fixed pattern disk, 14 patterns + white light, bidirectional variable speed rotation;
Contact Us
3
4
1
2

Details Introduction



High frequency stroboscopic 1-15 times/SEC stroboscopic switching, optional random stroboscopic and pulse stroboscopic, with 6 layers of clear color coating lens, 1 fixed color disk, 13 colors + white light, rainbow effect speed adjustable, half step color effect, 1 fixed pattern disk, 14 patterns + white light, bidirectional variable speed rotation
Horizontal scanning :540 degrees (160bit precision scanning) electronic error correction/vertical scanning :250 degrees (160bit precision scanning) electronic error correction,16 international standard DMX512 channels, master-slave mode;
The whole machine full ball fan (three defenses), a total of 9 ultra-quiet motors, electronic rectifier to make the product lighter weight, stronger brightness, more stable bulbs, more environmentally friendly, energy saving.
Exterior is made of high temperature resistant plastic + moulded alloy material



Main features:

● Voltage :AC110-240V,50/60Hz

● Light source :KAYN230w bulb

● Lamp life :1500-2000H

●CRI:>90

● Horizontal scanning :>540°(160bit precision scanning) electronic error correction.

● Vertical scanning :>270° (160bit precision scanning) electronic error correction.

●1 fixed color disk: 1 fixed color disk, 13 colors + white light, rainbow effect speed is adjustable, half step color effect

●1 fixed pattern plate: 1 fixed pattern plate, 14 patterns + white light, two-way variable speed rotation

● Channel :16 international standard DMX512 channels

● Focus: linear focus

● Dimming: 1-100% linear adjustment

● Optical lens: 6-layer clear color coated lens (custom)

● Stroboscopic: high double stroboscopic 1-15 times/second stroboscopic switch, random stroboscopic and pulse stroboscopic can be selected

● Atomization :0-100% linear atomization with colorful effect

● Prism plate: 8+8+8 prism

● Rectifier: Electronic rectifier makes the product lighter, brighter, more stable, more environmentally friendly, energy saving;





Technical Specifications




Light Source

⊙ Light source: KAYN230w bulb

⊙ Expected service life of lamp: 1500-2000H



Optical system

⊙ Advanced optical system is used to ensure clear imaging

⊙ Dimming: 0~100% linear dimming



Control and program

⊙ Control panel: built-in touch color LCD display

⊙ Control protocol: DMX512, RDM

⊙DMX control mode: 5 types

⊙ Control channel :16

⊙X /Y axis: 16 bit precision scan



X /Y axis

⊙X axis operating Angle: 540°

⊙ Y-axis operating Angle: 260°

⊙X axis /Y axis position out of step automatic correction



Electrical and interface

⊙ Adaptive power supply

⊙ Input voltage range: AC220v,50Hz

⊙ Power socket: Power connector input/output (optional)

⊙ Signal input/output: electrical and interface three-core and five-core cannon socket



Luminaire specification

⊙ Lamp size: base length 34cm base width 29cm lamp height 62cm

⊙ Net weight: 18 kg



Color palette

⊙1 fixed color disk, 13 colors + white light, rainbow effect speed adjustable, half step color effect



Pattern tray

⊙1 fixed pattern plate, 14 patterns + white light, two-way variable speed rotation



Working environment

⊙ Maximum ambient temperature: 40°C

⊙ Minimum operating temperature: 0°C

⊙ Maximum surface temperature: 65°C



Install

⊙ Can be mounted horizontally or vertically, not side hanging

Universal operating position



Factory configuration

⊙ Electronic Manual

⊙ Power Cable

⊙ signal cable



Optional accessories

⊙ Rain cover

⊙ Light hook

⊙ Safety rope





Dimensional Drawing




Lllumination Diagram




Renderings




Optional Accessories




Download




Mini 230W beam light instructions
