Shaking Head Stroboscopic

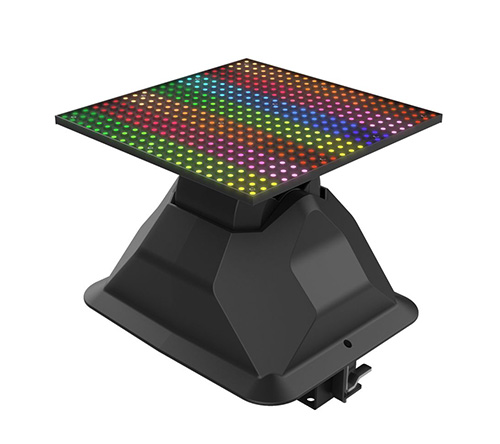

Our strobe is an LED panel effect light with shaking head function that provides pixel, strobe, dye and art installation effects. Compact and lightweight design, flexible modeling;
With 441 RGB LED light beads divided into 49 zones of individual control, 9 light beads form a control block, according to the use of needs to create a variety of styles of graphic background wall, can also be used for simple video effects;
Contact Us
2
4
3
1

Details Introduction

Area 49 can be controlled separately, can be embedded in the ceiling, wall side hanging, light hook side hanging and hanging, strong and high output strobe effect, additional installation of atomization sheet (optional) small size, light weight, excellent dyeing effect, 0-100% smooth dimming function, with audio control function, can control the lighting effect according to the music rhythm.



Main features:

●Light source: 441 x 0.2W RGB LED

● Beam Angle: 120°

● Spot Angle: 160°

● Area 49 can be controlled separately

● Can be built into the ceiling, wall side hanging, light hook side hanging and hanging

● Strong high output stroboscopic effect

● Additional atomizing plate (optional)

● Small size, light weight

● Excellent dyeing effect

●0-100% smooth dimming function

● With audio control function, can control the lighting effect according to the music rhythm



Technical Specifications




Light Source

⊙ Light source: 441 x 0.2W RGB LED



Optical system

⊙ Efficient optical system

⊙ Beam Angle: 120°

⊙ Spot Angle: 160°



Control and program

⊙ Control protocol: DMX512, RDM

⊙DMX channel mode: 2

⊙ Channel mode: 16/156

⊙X /Y axis: 16 bit precision scan



X /Y axis

⊙X axis /Y axis operating Angle: 76°/76°



Electrical and interface

⊙ Input power: 180-240V~ 50/60Hz

⊙ Power: 102 W

⊙ Power socket: IEC input

⊙ Signal input/output: RJ45 interface



Luminaire specification

⊙ Length: 28 CM

⊙ Width: 25 CM

⊙ Height: 25 CM

⊙ Net weight: 4.5kg



Working environment

⊙ Maximum ambient temperature: 40°C

⊙ Minimum operating temperature: 0°C

⊙ Maximum surface temperature: 65°C



Install

⊙ Can be installed horizontally or vertically

⊙ Special fixture, can be directly installed in the room ceiling

⊙2 light hooks for 50mm light stand

⊙ Safety rope connecting hole



Factory configuration

⊙ Electronic Manual

⊙ Power Cable

⊙ signal cable



Optional accessories

⊙ Rain cover

⊙ Light hook

⊙ Safety rope





Dimensional Drawing




Lllumination Diagram




Renderings
