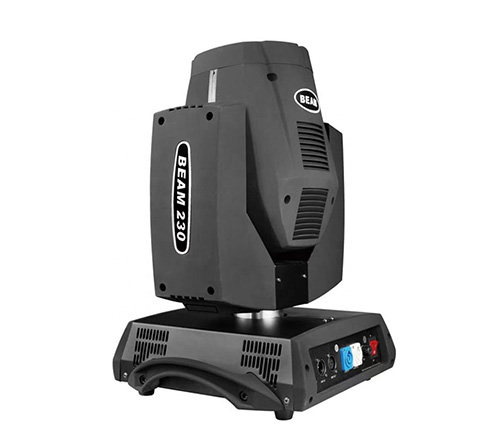

230W Beam Light
Stylish appearance, equipped with 1 fixed color disk, 14 colors + white light, rainbow effect speed adjustable, half step color effect; 1 fixed pattern plate, 17 patterns, two-way variable speed rotation
High number dual stroboscopic 1-15 times/second stroboscopic switching, can choose random stroboscopic and pulse stroboscopic, with HD lens, 1 fixed color disk, 14 colors + white light, rainbow effect speed adjustable, half step color effect; 1 fixed pattern plate, 17 patterns, two-way variable speed rotation
Horizontal scanning 540 degrees (160bit precision scanning) electronic error correction/vertical scanning 250 degrees (160bit precision scanning) electronic error correction,16 international standard DMX512 channels, master-slave mode;
The whole machine is full ball fan (three defense), a total of 11 ultra-quiet motors, electronic rectifier makes the product lighter weight, stronger brightness, more stable lamp, more environmentally friendly, energy saving.
Exterior is made of high temperature resistant plastic + moulded alloy material
Main features:
● Power supply :AC110-240V,50/60Hz 450W full power supply (three defenses)
● Light source: Kaiyuan lamp Average life of Kaiyuan lamp: 1500-2000H
● Stroboscopic: high double stroboscopic 1-15 times/second stroboscopic switch, random stroboscopic and pulse stroboscopic can be selected
● Atomization :0-100% linear atomization
● Focus: Linear focus dimming: 1-100% linear adjustment
● Optical lens: HD lens
● Light aperture: 116mm
● Beam Angle: Parallel beam Angle: 2.1-3.2 degrees
● Prism: 8+16+24 honeycomb Rhomboscope
● Color: 1 fixed color disk, 14 colors + white light, rainbow effect speed adjustable, half step color effect
● Solid map: 1 fixed pattern plate, 17 patterns, two-way variable speed rotation
● Horizontal scanning :540 degrees (160bit precision scanning) electronic error correction.
● Vertical scanning :250 degrees (160bit precision scanning) electronic error correction.
● Channel mode :16 international standard DMX512 channels, master-slave mode.
● Display: color display
● Heat dissipation: whole ball fan (three defenses)
● Number of motors: A total of 11 ultra-quiet motors
● Rectifier: Electronic rectifier makes the product lighter, brighter, more stable, more environmentally friendly, energy saving.
● Appearance: high temperature resistant plastic + molded alloy material
Technical Specifications
Light Source
⊙ Light source: KAYN bulb
⊙ Expected service life of lamp: 1500-2000H
Optical system
⊙ Advanced optical system is used to ensure the clarity of the beam
⊙ Dimming: 0~100% linear dimming
Control and program
⊙ Control protocol: DMX512, RDM
⊙DMX control mode: 5 types
⊙ Control channel :16
⊙X /Y axis: 16 bit precision scan
X /Y axis
⊙X axis operating Angle: 540°
⊙ Y-axis operating Angle: 260°
⊙X axis /Y axis position out of step automatic correction
Electrical and interface
⊙ Adaptive power supply
⊙ Input voltage range: AC220v,50Hz
⊙ Power socket: Power connector input/output (optional)
⊙ Signal input/output: electrical and interface three-core and five-core cannon socket
Luminaire specification
⊙ Lamp size: base length 40cm base width 30cm lamp height 50cm
⊙ Net weight: 16kg
Color palette
⊙1 fixed color disk, 14 colors + white light, rainbow effect speed adjustable, half step color effect
Pattern tray
⊙1 fixed pattern plate, 17 patterns, two-way variable speed rotation
Working environment
⊙ Maximum ambient temperature: 40°C
⊙ Minimum operating temperature: 0°C
⊙ Maximum surface temperature: 65°C
Install
⊙ Can be mounted horizontally or vertically, not side hanging
Universal operating position
Factory configuration
⊙ Electronic Manual
⊙ Power Cable
⊙ signal cable
Optional accessories
⊙ Rain cover
⊙ Light hook
⊙ Safety rope
Dimensional Drawing
Lllumination Diagram
Renderings
Optional Accessories
Download
230W moving head beam light user manual | |
HY@SpotspotDMX@16channels | |
HHE_230W-16ch.d4 | |
230(7r)@230(7r)@16ch | |
HH230W.R20 |
