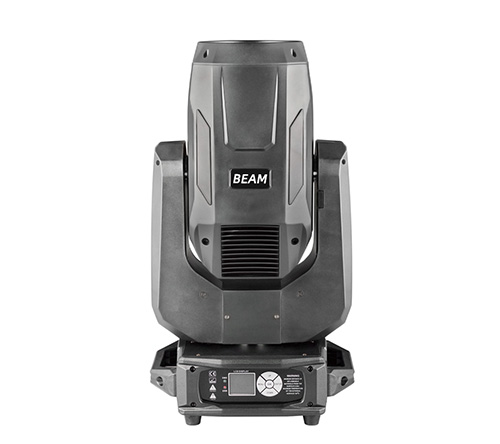

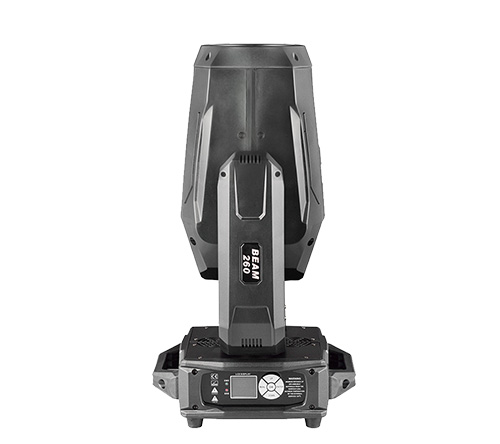

260W Beam Light

High number dual stroboscopic 1-15 times/second stroboscopic switching, can choose random stroboscopic and pulse stroboscopic, with HD color coated lens, 1 fixed color disk, 13 colors +1 white light, rainbow effect speed adjustable, half step color effect and 1 fixed pattern disk, 13 patterns +1 white light (including 4 wave patterns), can be rotated bidirectional variable speed
Horizontal scanning 540 degrees (160bit precision scanning) electronic error correction/vertical scanning 250 degrees (160bit precision scanning) electronic error correction,16 international standard DMX512 channels, master-slave mode;
The whole machine is full of ball fans (three defenses), a total of 12 ultra-quiet motors, electronic rectifier makes the product lighter, brighter, more stable bulbs, more environmentally friendly, energy saving.
Exterior is made of high temperature resistant plastic + moulded alloy material

Main features:

●Power supply :AC110-240V,50/60Hz 450W full power supply (three defenses)
● Light source: Phoenix bulb

● Average life: 1500-2000H
● Stroboscopic: high double stroboscopic 1-15 times/second stroboscopic switch, random stroboscopic and pulse stroboscopic can be selected
● Atomization :0-100% linear atomization with colorful effect
● Focus: Linear focus dimming: 1-100% linear adjustment
● Optical lens: HD color coated lens
● Light aperture: 152mm
● Beam Angle: Parallel beam Angle :2.1 degrees
● Prism plate: 8 rhomboscope, 8+16+24 honeycomb Rhomboscope, double rhomboscope can be superimposed
● Color: 1 fixed color disk, 13 colors +1 white light, rainbow effect speed adjustable, half step color effect
● Solid map: 1 fixed pattern plate, 13 patterns +1 white light (including 4 wave maps), can be rotated bidirectional variable speed
● Horizontal scanning :540 degrees (160bit precision scanning) electronic error correction.
● Vertical scanning :250 degrees (160bit precision scanning) electronic error correction.
● Channel mode :16 international standard DMX512 channels, master-slave mode.
● Display: color display
● Heat dissipation: whole ball fan (three defenses)
● Number of motors: A total of 12 ultra-quiet motors
● Rectifier: Electronic rectifier makes the product lighter, brighter, more stable, more environmentally friendly, energy saving.
● Appearance: high temperature resistant plastic + molded alloy material

Technical Specifications

Light Source

⊙ Light source: Phoenix bulb

⊙ Expected service life of lamp: 1500-2000H

Optical system

⊙ Advanced optical system is used to ensure the clarity of the beam

⊙ Dimming: 0~100% linear dimming

Control and program

⊙ Control protocol: DMX512, RDM

⊙DMX control mode: 5 types

⊙ Control channel :16

⊙X /Y axis: 16 bit precision scan

X /Y axis

⊙X axis operating Angle: 540°

⊙ Y-axis operating Angle: 260°

⊙X axis /Y axis position out of step automatic correction

Electrical and interface

⊙ Adaptive power supply

⊙ Input voltage range: AC220v,50Hz

⊙ Power socket: Power connector input/output (optional)

⊙ Signal input/output: electrical and interface three-core and five-core cannon socket

Luminaire specification

⊙ Lamp size: base length 33cm base width 24cm lamp height 60cm

⊙ Net weight: 14kg

Color palette

⊙1 fixed color disk, 13 colors +1 white light, rainbow effect speed adjustable, half step color effect

Pattern tray

⊙1 fixed pattern plate, 13 patterns (including 4 glass maps), can be rotated bidirectional variable speed

Working environment

⊙ Maximum ambient temperature: 40°C

⊙ Minimum operating temperature: 0°C

⊙ Maximum surface temperature: 65°C

Install

⊙ Can be mounted horizontally or vertically, not side hanging

Universal operating position

Factory configuration

⊙ Electronic Manual

⊙ Power Cable

⊙ signal cable

Optional accessories

⊙ Rain cover

⊙ Light hook

⊙ Safety rope

Dimensional Drawing

Lllumination Diagram

Renderings

Optional Accessories

Download

	260W moving head beam light user manual
	HH-260W.R20
	HH-260W.d4
	hh@260@16ch
