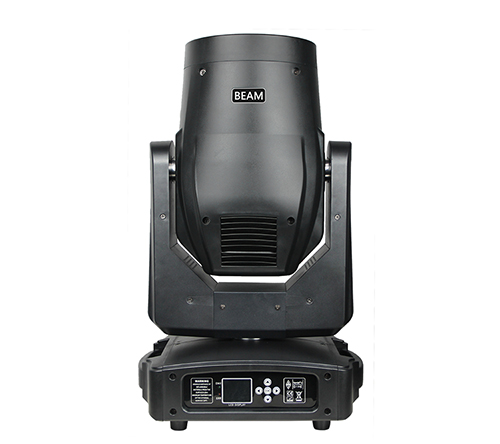

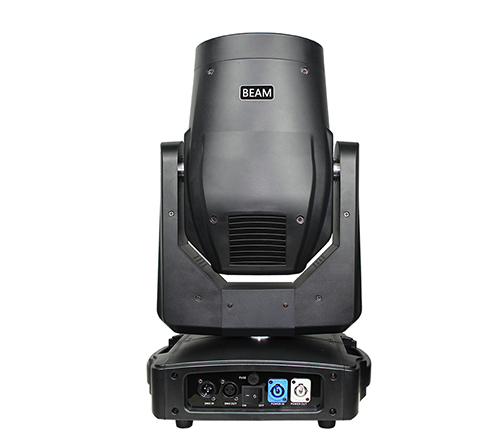

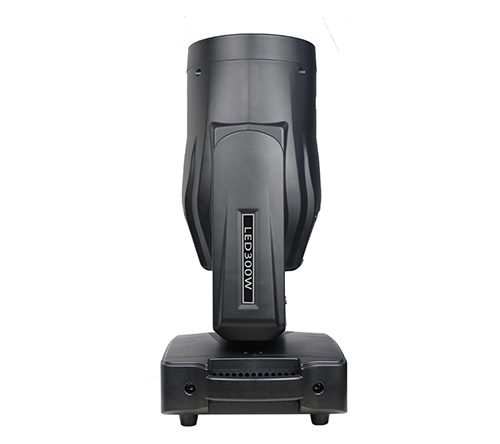

LED300W Beam Light

Using 300W white light module, the lens is a 6-layer clear color coated lens, so that the lighting effect is better, the perfect combination of light source and optical technology;
Equipped with 1 fixed color disk, 14 colors + white light, rainbow effect speed adjustable, half step color effect and 1 fixed pattern disk, 17 patterns, reversible rotation;
Contact Us
2
4
3
1

Details Introduction





High number dual stroboscopic 1-15 times/second stroboscopic switching, can choose random stroboscopic and pulse stroboscopic, has 6 layers of clear color coating lens, 1 fixed color disk, 14 colors + white light, rainbow effect speed adjustable, half step color effect and 1 fixed pattern disk, 17 patterns, can be rotated bidirectional variable speed
Horizontal scanning 540 degrees (160bit precision scanning) electronic error correction/vertical scanning 250 degrees (160bit precision scanning) electronic error correction,16 international standard DMX512 channels, master-slave mode;
The whole machine full ball fan (three defense), a total of 13 ultra-quiet motors, electronic rectifier to make the product lighter weight, stronger brightness, more stable bulbs, more environmentally friendly, energy saving.
Exterior is made of high temperature resistant plastic + moulded alloy material



Main features:

● Power supply :AC110-240V,50/60Hz 450W full power supply (three defenses)
● Light source: 300W white light module
● Stroboscopic: high double stroboscopic 1-15 times/second stroboscopic switch, random stroboscopic and pulse stroboscopic can be selected
● Atomization :0-100% linear atomization
● Focus: Linear focus dimming: 1-100% linear adjustment
● Optical lens: 6-layer clear color coated lens
● Light aperture: 152mm
● Beam Angle: Parallel beam Angle: 2.1-3.2 degrees
● Prism: an 8 prism + an 8+16 prism
● Color: 1 fixed color disk, 14 colors + white light, rainbow effect speed adjustable, half step color effect
● Solid map: 1 fixed pattern plate, 17 patterns, two-way variable speed rotation
● Horizontal scanning :540 degrees (160bit precision scanning) electronic error correction.
● Vertical scanning :250 degrees (160bit precision scanning) electronic error correction.
● Channel mode :16 international standard DMX512 channels, master-slave mode.
● Display: color display
● Heat dissipation: whole ball fan (three defenses)
● Number of motors: A total of 13 ultra-quiet motors
● Rectifier: Electronic rectifier makes the product lighter, brighter, more stable, more environmentally friendly, energy saving.
● Appearance: high temperature resistant plastic + molded alloy material





Technical Specifications




Light Source

⊙ Light source: 300W white light module

⊙ Expected service life of lamp: 20000H



Optical system

⊙ Advanced optical system is used to ensure the clarity of the beam

⊙ Dimming: 1~100% linear dimming



Control and program

⊙ Control protocol: DMX512, RDM

⊙DMX control mode: 5 types

⊙ Control channel :16

⊙X /Y axis: 16 bit precision scan



X /Y axis

⊙X axis operating Angle: 540°

⊙ Y-axis operating Angle: 260°

⊙X axis /Y axis position out of step automatic correction



Electrical and interface

⊙ Adaptive power supply

⊙ Input voltage range: AC220v,50Hz

⊙ Power socket: Power connector input/output (optional)

⊙ Signal input/output: electrical and interface three-core and five-core cannon socket



Luminaire specification

⊙ Lamp size: base length 32cm base width 26cm lamp height 56cm

⊙ Net weight: 16kg



Color palette

⊙1 fixed color disk, 14 colors + white light, rainbow effect speed adjustable, half step color effect



Pattern tray

⊙1 fixed pattern plate, 17 patterns, two-way variable speed rotation



Working environment

⊙ Maximum ambient temperature: 40°C

⊙ Minimum operating temperature: 0°C

⊙ Maximum surface temperature: 65°C



Install

⊙ Can be mounted horizontally or vertically, not side hanging

Universal operating position



Factory configuration

⊙ Electronic Manual

⊙ Power Cable

⊙ signal cable



Optional accessories

⊙ Rain cover

⊙ Light hook

⊙ Safety rope
