MAGICIAN-HH

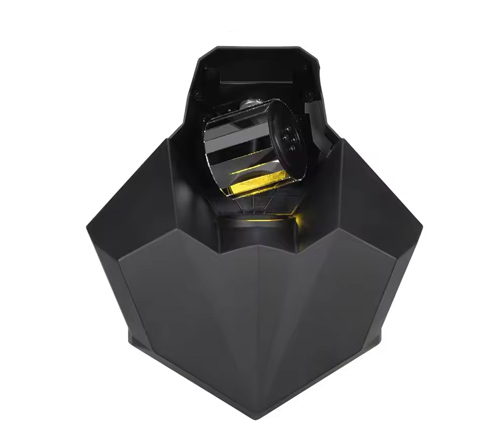

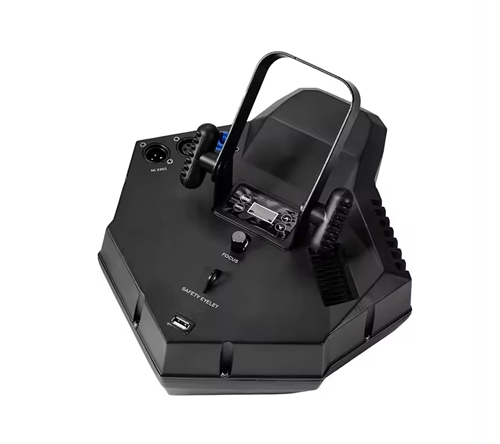

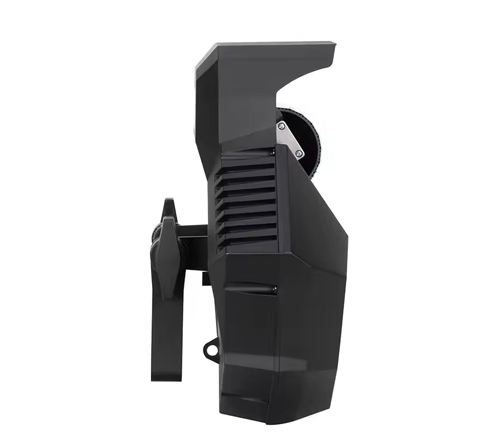

Mini Wizard lamp has a stylish and fluent appearance design, simple and neat structure. Unique light source module design, using 80W white LED module, clever optical design, with a variety of pattern modeling and rotating drum refraction Angle, to create a beautiful dynamic effect.
Easy to install, hanging or side hanging;
Built-in rich performance mode, flowery and colorful light effect to meet the lighting needs of KTV, party rooms, bars and other places.
Contact Us
5
7
6
8

Details Introduction



Light source is the use of 80W white LED module, clever optical design, with a variety of patterns and rotating drum refraction Angle, to create a beautiful dynamic effect. 7 patterns (with fixed colors)+1 flowing pattern + white circle;

Easy to install, hanging or side hanging. Built-in rich performance mode, flowery and colorful light effect to meet the lighting needs of KTV, party rooms, bars and other places.



Main features:

● Light source :80W white LED module
● Color temperature :7,500-8,000K
●LED life :20,000 hours
● Optical system: efficient optical system
● Cylinder scanning Angle: horizontal :110° Vertical :90°
● Control protocol :DMX512,RDM
● Channel mode :8
● Software upgrade: Update software via DMX connection
● Artificial Intelligence iot system :AIOT Fengyun System, "Yi · Data" automatic management system (optional)
●X axis operating Angle :180°
● Y-axis operating Angle: no pole rotation
● Input power supply :180-240V~50/60Hz. Power :100W
● Fixed pattern plate: 7 patterns (with fixed colors)+1 flow pattern + white circle



Technical Specifications




Light Source

⊙ Light source: 80W white LED module

⊙ Expected service life of lamp: 20000H



Optical system

⊙ Advanced optical system is used to ensure the clarity of the beam



Control and program

⊙ Control protocol: DMX512

⊙DMX control mode: 5 types

⊙ Control channel :8CH



Electrical and interface

⊙ Adaptive power supply

⊙ Input voltage range:180-240V~50/60Hz

⊙ Power socket: Power connector input/output (optional)



Luminaire specification

⊙ Lamp size: base length 29cm base width 15cm lamp body height 32cm

⊙ Net weight: 4kg



Working environment

⊙ Maximum ambient temperature: 50°C

⊙ Minimum operating temperature: 0°C

⊙ Maximum surface temperature: 65°C



Install

⊙ Can be mounted horizontally or vertically,

Universal operating position



Factory configuration

⊙ Electronic Manual



Optional accessories

⊙ Rain cover

⊙ Light hook

⊙ Safety rope
