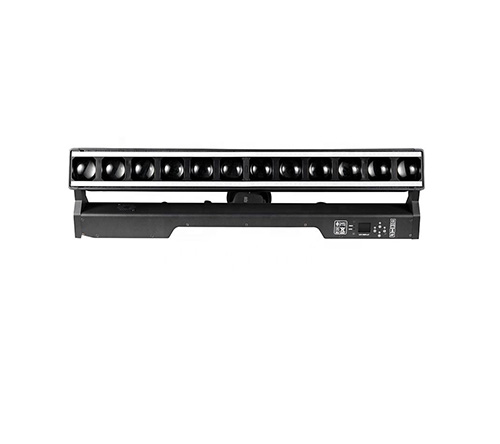

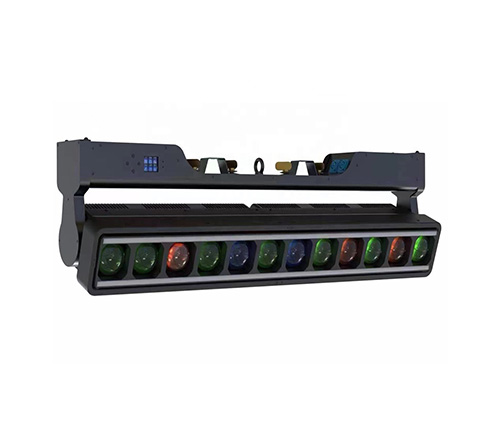

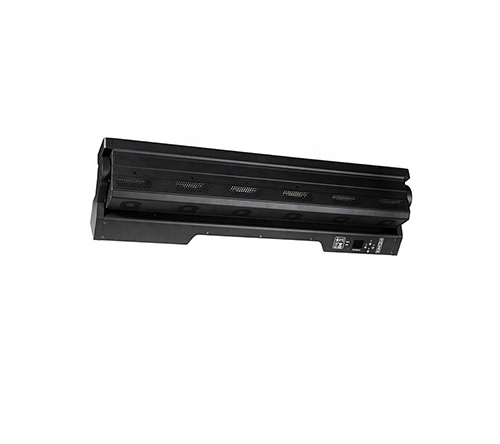

12*40W LED Moving Bar with Zoom light

New atmosphere Sharp 1240 Shaking Head Light Super Iron Curtain Hardcore online! Comprehensive upgrade, the use of a variety of LED combination, 12 40W four-in-one foot add Xin lamp beads, can project a sharper beam. The rest of the area uses 144 0.3-watt 5050 three-in one lamp beads, with outstanding RGB color mixing function. Is a set of light beam, dyeing effect in one of the multi-functional effect light, when a number of lamps seamless splicing, equidistant arrangement of light beads emitt
Contact Us
3
4
2
1

Details Introduction



Light source is the use of 12 40W four-in-one foot add xin lamp beads and 144 0.3W 5050 three-in-one lamp beads, clever optical design, to create a beautiful dynamic effect.

The control mode has DMX512, self-walking, master-slave, voice control, with RDM function, with shaking head + beam + flash + auxiliary light function

Is a set of light beam, dyeing effect in one of the multi-functional effect light, when a number of lamps seamless splicing, equidistant arrangement of light beads emitted light can cover a wide area, greatly meet the lighting needs of concerts, variety shows and other places.



Main features:

● Voltage: AC100~240V 50/60HZ
● Power: 500W
● Lamp beads: 12 40W 4-in-1 foot add Xin lamp beads 144 0.3W 5050 three-in-1 lamp beads
● Control mode: DMX512, self-walking, master-slave, voice control, with RDM function.
● Channels: CH24, CH36, CH60, CH72, CH144.
● Dimming: 32bit 0~100% linear dimming
● Features: Y shaking head + beam + flash + auxiliary light
● Working temperature: -30 degrees ~50 degrees
● Stroboscopic frequency: 1~30HZ
● Appearance: metal, black
● Connection mode: DMX512 input/Output/power input/output.
●IP level: IP20

Technical Specifications




Light Source

⊙ Light source: 12 40W four-in-one foot add Xin lamp beads 144 0.3W 5050 three-in-one lamp beads

⊙ Expected service life of lamp: 20000H



Optical system

⊙ Advanced optical system is used to ensure the clarity of the beam



Control and program

⊙ Control protocol: DMX512

⊙DMX control mode: 5 types

⊙ Control channel :CH24、CH36、CH60、CH72、CH144



Electrical and interface

⊙ Adaptive power supply

⊙ Input voltage range:180-240V~50/60Hz

⊙ Power socket: Power connector input/output (optional)



Luminaire specification

⊙ Lamp size: base length 100cm base width 11cm lamp body height 30cm

⊙ Net weight: 5kg



Working environment

⊙ Maximum ambient temperature: 50°C

⊙ Minimum operating temperature: 0°C

⊙ Maximum surface temperature: 65°C



Install

⊙ Can be mounted horizontally or vertically,

Universal operating position



Factory configuration

⊙ Electronic Manual



Optional accessories

⊙ Rain cover

⊙ Light hook

⊙ Safety rope





Dimensional Drawing




Lllumination Diagram


Optional Accessories




Download
